The tilting kit is make with aluminium and steel
Item wheels exclude
Ask : what size of bicycle can use this tilting kit ?
An's : it can fit for most bicycle and E-bike , we suggest need check the wheel diameter before you buy, usually you need prepare pair of wheels it should be 4 " smaller than the rear wheel .
For example , if you bike wheels is 26" then the front wheels should be use 22" , if the bike wheels is 20" then the pair front wheels are 16" need .
it is for balance the whole bike need after install the tilting kit on your bike .
Ask : what the bike fork can be fit for use ?

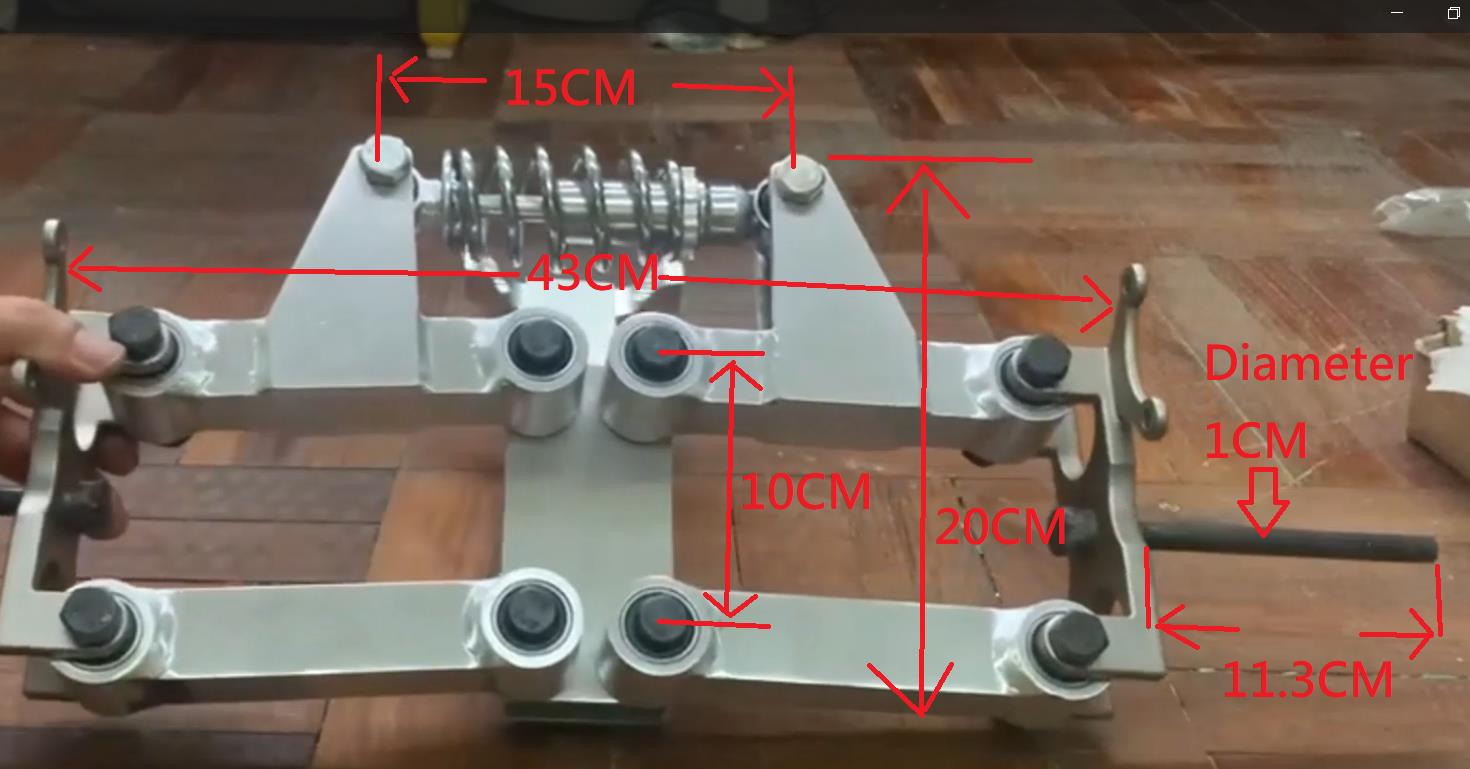

An's : Please see the picture as we show different fork size can be fit use for , due to so many fork size in the market , so if your bike fork is out of the list on picture , just tell us
what fork size need ( see picture how to measure different position on the fork )
3 position check :
1) fork to fork distance ( upper position )
2) fork to fork distance on end of bottom ( position for fit the bolt )
3) fork tube diameter
Ask : possible supply the wheels
An's : We can , you can select the different item it is wheels included , just cost increased

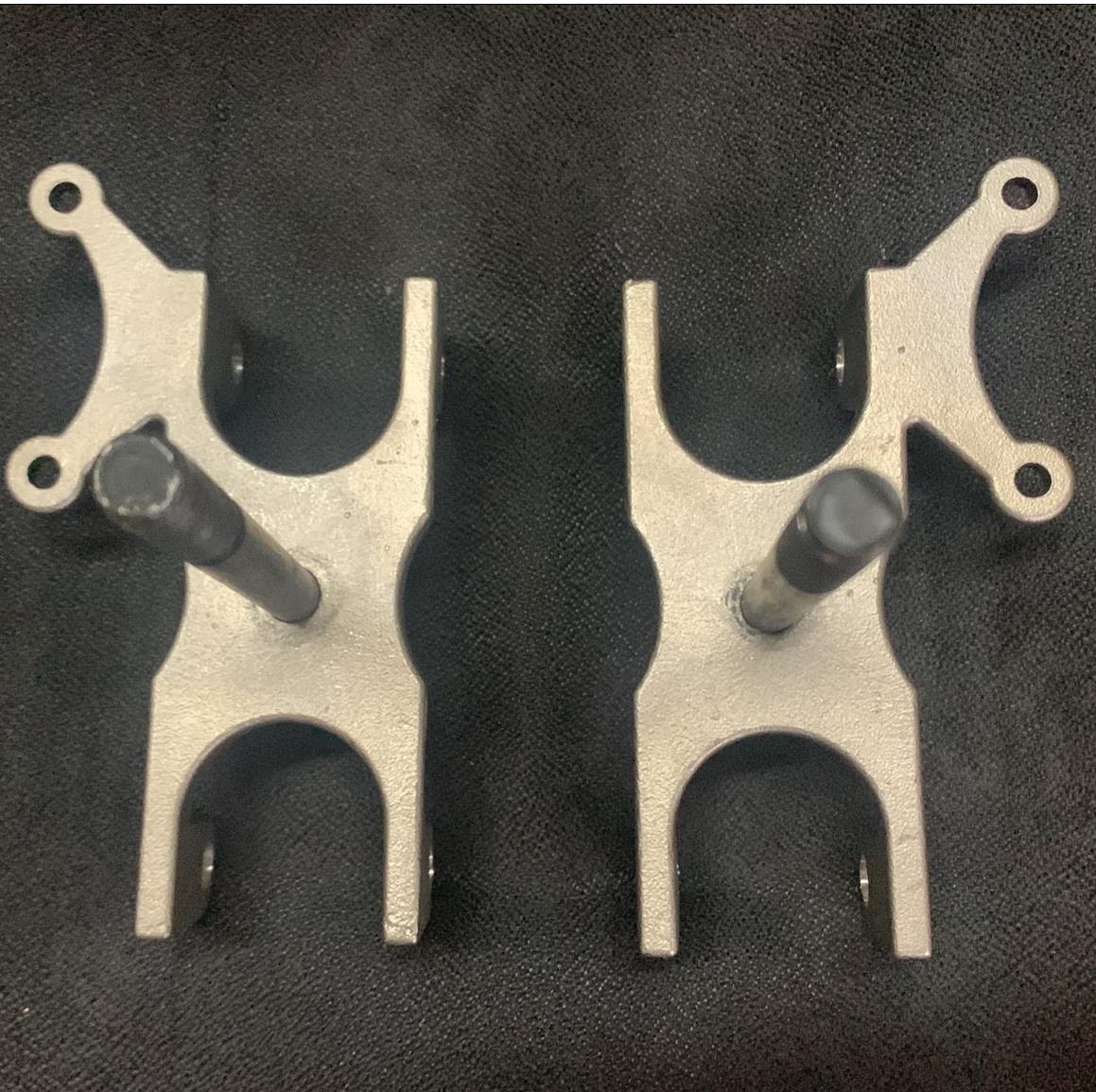

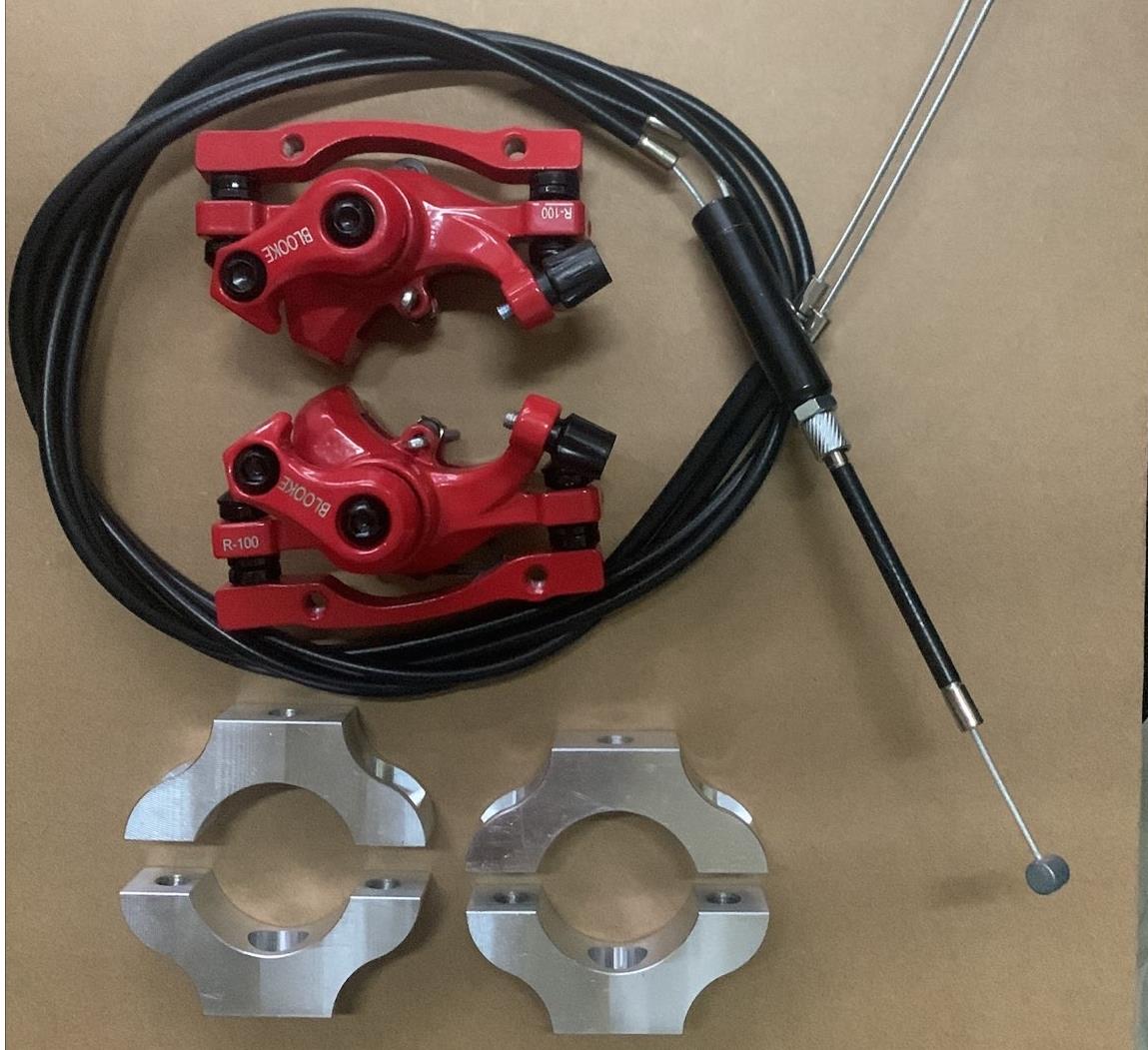

What item included
see picture below :



IMPORTANT NOTE :
please be careful if use the pair front wheels it is not supply from us .
Because the normal wheel hub is not for tricycle use ( disk brake type )
if you use the wheel hubs it must be combined with the brake disk base type
and it is not use a separate screw type base , as you can imaging the both front wheels go to same direction when go forward then the one of brake disk will loose if using the screw type of brake disk base , so it is very important for safety riding .
See the below picture of hubs type we suggest use on tricycle
