Dual axis Sun tracker

Model : SST-16007 SUN TRACKER + wind speed detect board Operating Manual:

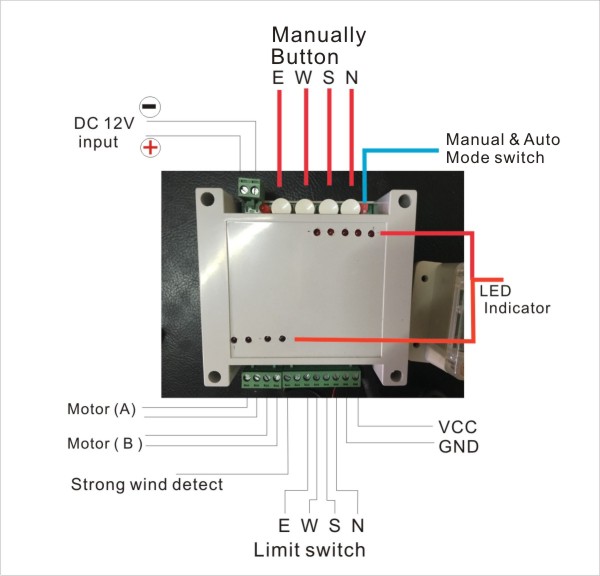

Motor = A1 A2 / B1 B2

VCC / GND / NSWE, respectively, 5V output, ground, north, / South / West / East limit switch, F1 useless, F2 then anemometer, not connected to and GND connected together. When the touch is "off" state) one of the lines grounded.

Red DIP switch: "ON" is manual, "1" is the automatic mode

4 white by the health of the manual button.

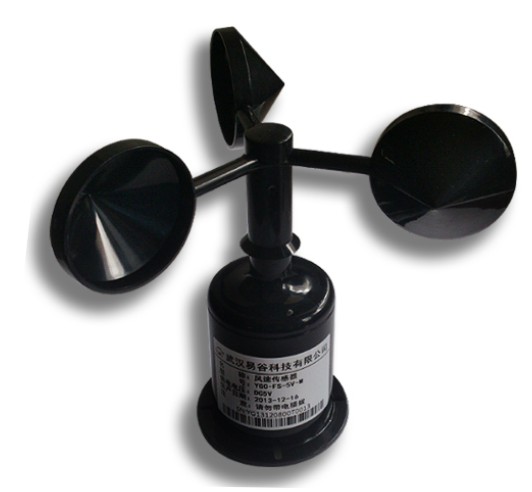

Connect the anemometer (3 wires GND( Black & Green or yellow ) / VCC ( Brown )/ F2 ( Blue )

Features :

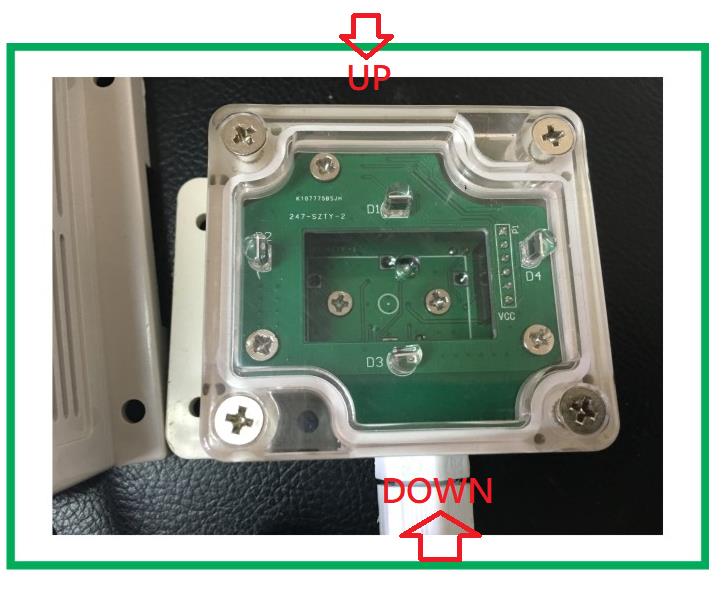

Double layer sensor by 8 PCS Photodiode .

With reverse polarity protection

Operating voltage 9-25V (output fit for motor 12 ~ 24DCV under 20A )
High precision and accuracy . ( +/- 0.5 degree )

Auto return to East function .

Over wind speed protection . (Selectable Anemometer )
Lead-free soldering ( PCB )
Controller Plastic case by ABS
Waterproof Sensor plastic case
